Claw hammer Size & Weight

A standard household claw hammer is about 330 mm (13 in) long, with a head roughly 100 mm across the face-to-claw span and 40 mm deep. The common size has a 16-ounce (450 g) head and weighs about 540 g in total with the handle.

This guide covers the exact hammer dimensions, what “16 oz” refers to, how framing and finish hammers differ, and how a hammer compares to a 30 cm ruler and a forearm.

Quick Answer: How Big Is a Claw Hammer?

A typical claw hammer is 300 – 340 mm long overall, with a head about 100 – 130 mm long and 25 – 40 mm across the face. The standard 16 oz designation is the head weight; total tool weight is usually 500 – 650 g.

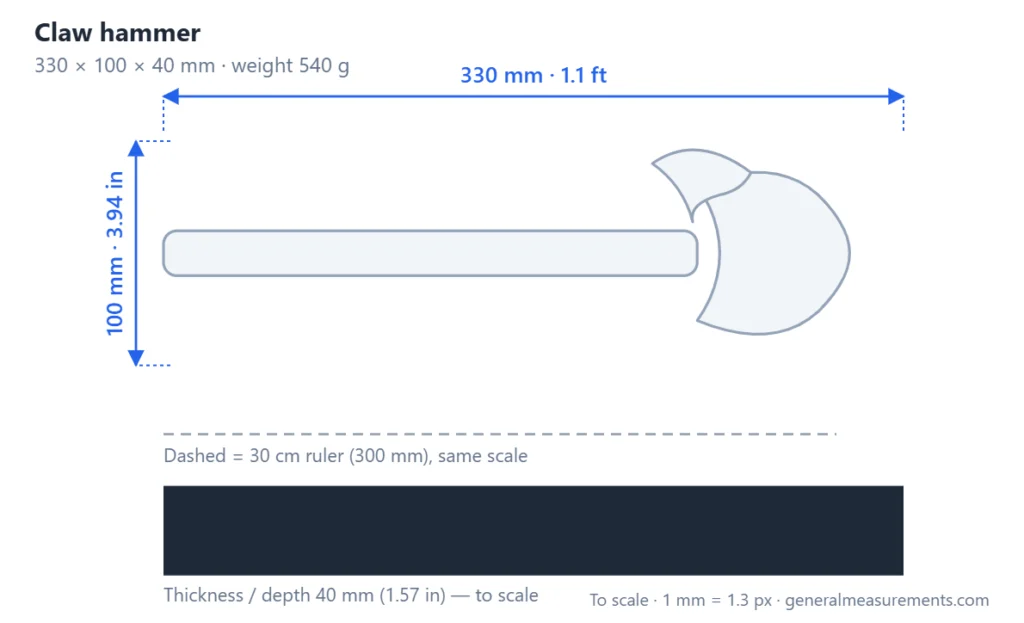

Claw Hammer Dimensions at a Glance

• Overall length: 330 mm typical (curved-claw finish hammer); framing hammers run 400 – 460 mm
• Head: the “16 oz” and “20 oz” numbers are the head weight, not the whole tool
• Face diameter: 25 – 32 mm, flat or slightly domed
• Claw: curved on finish hammers for nail-pulling, straighter (“rip claw”) on framing hammers for prying
• Handle: wood (hickory), fibreglass, or steel; steel-handled hammers weigh more overall for the same head

What Does a Claw Hammer Look Like in Size?

A claw hammer is a little longer than a 30 cm ruler and roughly the length of an adult forearm from elbow to wrist. Held at the end of the handle it reaches from the palm to past the elbow. The head alone is about the size of a small stapler.

6 Everyday Comparisons for a Claw Hammer

1. A 30 cm ruler (305 mm) is about 25 mm shorter than a standard claw hammer.
2. An adult forearm (elbow to wrist, ~260 mm) is a bit shorter than the hammer.
3. A framing hammer (400 – 460 mm, 20 – 28 oz head) is 70 – 130 mm longer and noticeably heavier.
4. A 25 ft tape measure (case ~80 mm) is far smaller; the hammer is about 4 tape cases long.
5. A wine bottle (300 mm) is close to the hammer’s length.
6. A standard house brick (203 mm) is about 60% of the hammer’s length.

Claw Hammer Size in Different Units

Hammer Types and Sizes

A heavier head drives nails in fewer swings but is more tiring and less precise, which is why trim carpenters favour 16 oz and framers use 20 – 28 oz with a longer handle for leverage.

Common Mistakes When Comparing Claw Hammer Dimensions

1. Reading “16 oz” as the total weight. It is the head weight; the whole hammer is around 19 oz (540 g).
2. Assuming all claw hammers are the same length. A framing hammer is 100 mm or more longer than a finish hammer.
3. Ignoring handle material. A steel-handled 16 oz hammer weighs more overall than a wood-handled one.
4. Confusing a curved claw and a rip claw. Curved claws pull nails; straight rip claws pry boards apart.
5. Measuring the head instead of the tool. “How long is a hammer” means the overall length, about 330 mm.

Frequently Asked Questions

How long is a claw hammer?

About 330 mm (13 in) for a standard household hammer; framing hammers are 400 – 460 mm.

What does “16 oz hammer” mean?

The head weighs 16 ounces (about 450 g). The whole tool is around 540 g.

How much does a claw hammer weigh?

Usually 500 – 650 g total, depending on head size and handle material.

What is the difference between a claw hammer and a framing hammer?

A framing hammer is longer and heavier with a straighter claw for prying; a claw hammer is shorter with a curved claw for pulling nails.

What size hammer should I buy for home use?

A 16 oz curved-claw hammer, about 330 mm long, handles most household jobs.

How long is the head of a claw hammer?

About 120 mm from the face to the tip of the claw.

Final Takeaway

A standard claw hammer is about 330 mm long with a 16 oz (450 g) head and roughly 540 g total weight. “16 oz” is the head weight, not the whole tool, and framing hammers are 100 mm or more longer and several ounces heavier for driving big nails.
