75-inch TV Dimensions

A 75-inch TV has a screen about 1660 x 934 mm (65.4 x 36.8 in), and with the frame the panel is roughly 1670 x 950 mm. The “75 inches” is the screen’s diagonal, not its width.

This guide covers the real width and height of a 75-inch TV, how much a stand adds, how it compares to a 65 and an 85, and how big it looks on a living-room wall.

Quick Answer: How Big Is a 75-Inch TV?

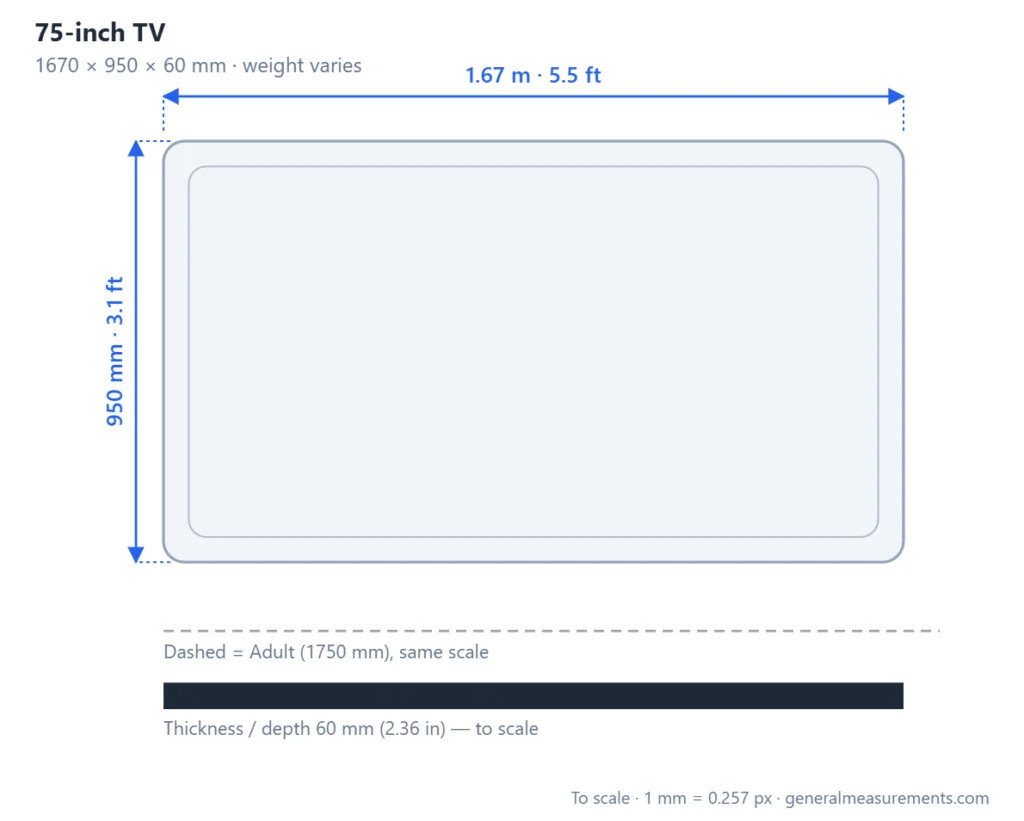

The visible screen is 1660 mm wide and 934 mm tall (65.4 x 36.8 in). With the bezel, a typical 75-inch TV is about 1670 x 950 mm and 60 mm deep without a stand. Weight is usually 28 – 40 kg.

75-Inch TV Dimensions at a Glance

• Screen (16:9): 1660 x 934 mm / 166.0 x 93.4 cm / 65.4 x 36.8 in
• With bezel: roughly 1670 x 950 mm
• Depth: about 60 mm panel; 300 – 370 mm with feet or stand
• With stand: add about 50 – 100 mm to height; feet are usually near the far edges, 1300 – 1600 mm apart
• Weight: 28 – 40 kg without the stand; often a two-person lift

What Does a 75-Inch TV Look Like on the Wall?

The screen is about 1.66 m wide, wider than a standard single bed is long, and 0.93 m tall, roughly waist height on an adult. It needs a wall of at least 2 m of clear width to look balanced and a console around 1.5 m or wider.

6 Everyday Comparisons for a 75-Inch TV

1. A 65-inch TV (screen 1439 x 809 mm) is 221 mm narrower and 125 mm shorter.
2. An 85-inch TV (screen 1882 x 1058 mm) is 222 mm wider and 124 mm taller.
3. A standard interior door (813 x 2032 mm) is about half the screen’s width and much taller.
4. A king mattress (1930 x 2032 mm) is 270 mm wider than the screen.
5. A three-seat sofa (about 2000 mm wide) is 340 mm wider than the screen.
6. A sheet of A0 paper (841 x 1189 mm) is about half the screen’s width.

75-Inch TV Size in Different Units

Why “75 Inch” Is Not the Width

The figure is the diagonal. For a 16:9 screen the width is about 0.872 times the diagonal and the height about 0.490 times it, so a 75-inch screen is 65.4 in wide. Because the feet on a 75-inch TV usually sit near the outer edges, measure the foot spacing before choosing a console, not just the total width.

Common Mistakes When Sizing a 75-Inch TV

1. Assuming it is 75 inches wide. It is about 65 inches wide.
2. Buying a console narrower than the foot spacing. Many 75-inch TVs need 1300 – 1600 mm between supports.
3. Underestimating weight. At 28 – 40 kg it is a two-person carry and needs a rated wall mount.
4. Ignoring stand depth. Feet add 300 – 370 mm forward.
5. Not checking doorways. The retail box can be 1.9 m wide and will not fit through some interior doors flat.

Frequently Asked Questions

How wide is a 75-inch TV?

The screen is about 166 cm (65.4 in); with the bezel, roughly 167 cm.

How tall is a 75-inch TV?

The screen is about 93.4 cm (36.8 in); with bezel and stand, up to about 100 cm.

Is 75 inches the width?

No, it is the diagonal. The width is about 65 inches.

How much does a 75-inch TV weigh?

Usually 28 – 40 kg without the stand.

How much bigger is a 75-inch than a 65-inch?

The screen is 221 mm wider and 125 mm taller.

What size console for a 75-inch TV?

At least 1500 mm wide, and check the stand foot spacing, which can reach 1600 mm.

Final Takeaway

A 75-inch TV has a screen of about 1660 x 934 mm (65.4 x 36.8 in), and with the bezel roughly 1670 x 950 mm, weighing 28 – 40 kg. As “75 inches” is the diagonal, the set is about 65 inches wide, and its wide-set feet mean the console has to match the foot spacing, not just the overall width.
